Quick setup

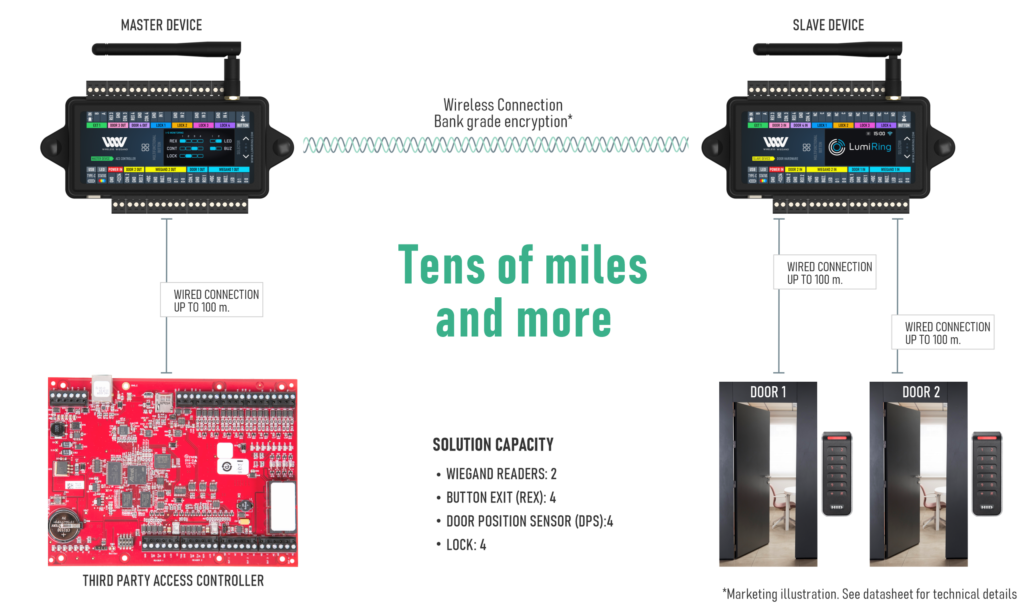

Solution overview

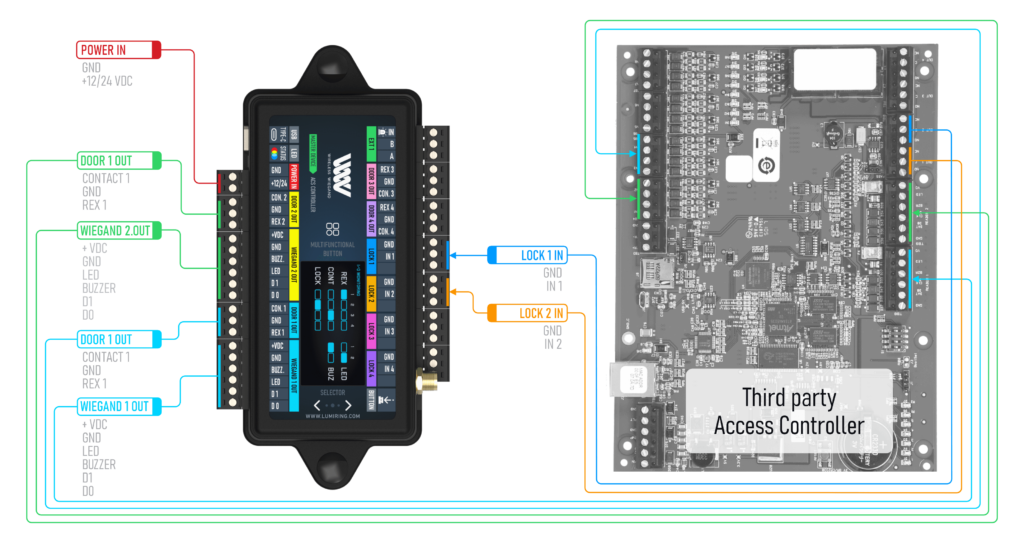

Master device connection

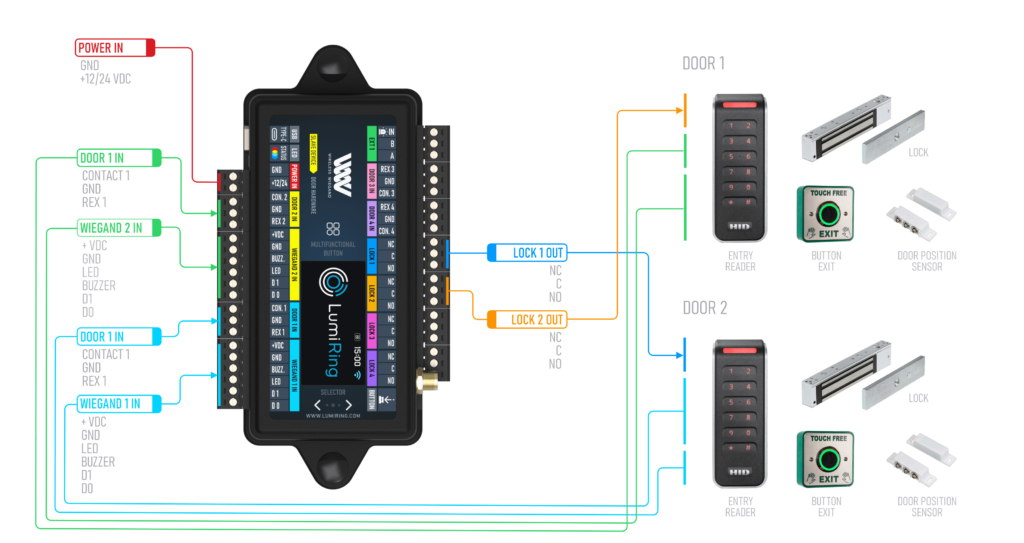

Slave device connection

Specification

# Parameter Slave device Master device
1 Voltage:

12 or 24 VDC operation

The voltage at the outputs is determined by the power supply.
0.2A@12 VDC, 0.1 A @ 24 VDC current consumption
2 Outputs: Four (4) dry form “C” 1.5A rated
relay outputs		 Eight (8) outputs (dry contact) from
0 to 5 VDC
3 Inputs:

Eight (8) inputs (dry contact) from 0 to 5 VDC

One (1) input (dry contact) 0 to 5 VDC for local emergency relay opening

 Four (4) relay control inputs (dry contact)
from 0 to 5 VDC
4 Communication
interfaces:		 • Wi-Fi 802.11 b/g/n 2.4 GHz
• Two (2) Wiegand ports from 4 to 80 bits
• RS-485 (OSDP)
• USB ports (Type-C) for firmware update
5 Range: Tens of miles or more (depending on environment and elevation)
6 Encryption: AES 128
7 Dimensions (D x H): 5.9″ x 3.15″ x 1.38″ (150 x 80 x 35 mm) excluding antenna
8 Mounting method: Wall mount/Din rail mount (option)
9 Weight: 5.36oz(152g)
10 Operation temperature:

Operation: 32°F ~ 120°F (0°C ~ 49°C)

Storage: -22°F ~ 158°F (-30°C ~ 70°C)
11 Relative humidity: 5-85 % RH without condensation
12 Ingress protection
rating:		 IP 20
